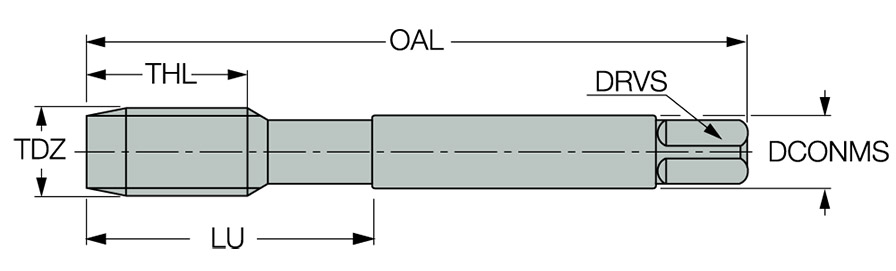

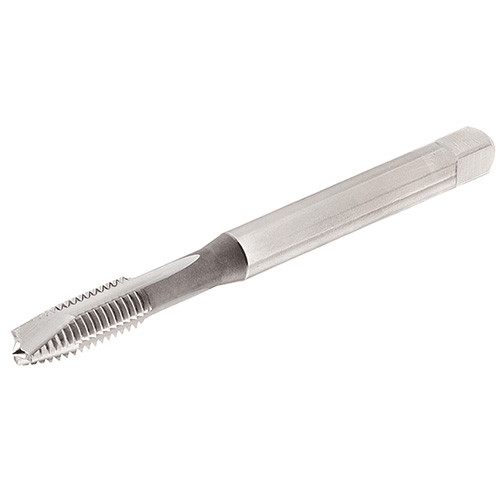

TPGN M-12X1.75-M HE
Spiral Point Tap; M12 × 1.75 mm ; 4.331″ OAL ; 4 FL ; HSS ; Uncoated
| Thread Size | 12 × 1.75 | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Thread Diameter Size (TDZ) | M12 | Connection Diameter Machine Side (DCONMS) | 0.354″ |
| Thread Pitch (TP) | 1.75 mm | Thread Cutting Part Length (THL) | 0.866″ |
| Overall Length (OAL) | 4.331″ | Drive Size (DRVS) | 0.276″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Grade | HE |
| Cutting Edge Material | HSS | Body Material | HSS |
| Tool Type | Machine Blind Hole Taps |
Product Features
| Family Description | DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Coarse Threads for a Wide Range of Materials | Country of Origin | Hungary |
Shipping Info
Package Weight
62
