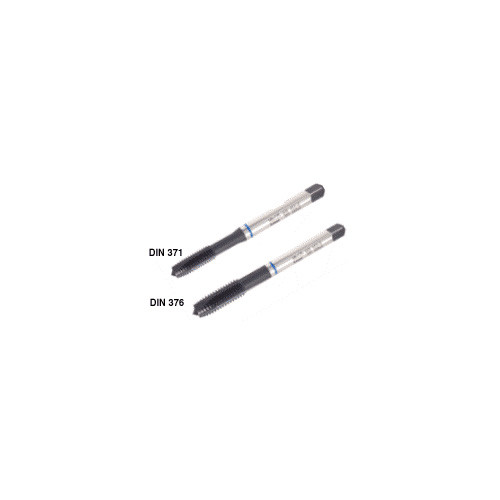

TPGN M-4X0.7-S PMTC
Spiral Point Tap; M4 × 0.7 mm ; 2.48″ OAL ; 3 FL

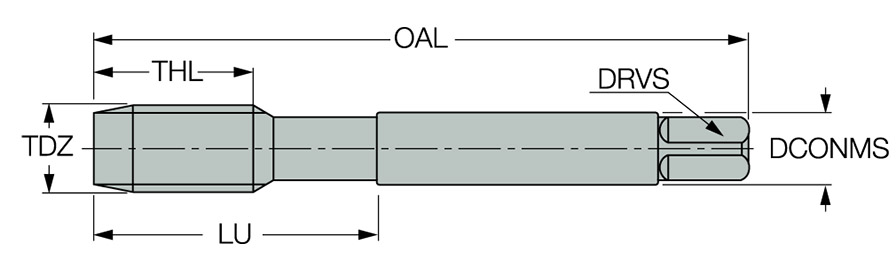

| Thread Size | 4 × 0.7 | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Thread Diameter Size (TDZ) | M4 | Connection Diameter Machine Side (DCONMS) | 0.177″ |
| Thread Pitch (TP) | 0.7 mm | Thread Cutting Part Length (THL) | 0.472″ |
| Usable Length (LU) | 0.83″ | Drive Size (DRVS) | 0.134″ |
| Overall Length (OAL) | 2.48″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | PMTC |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
Product Features
| Country of Origin | Hungary |
Shipping Info
Package Weight
12
