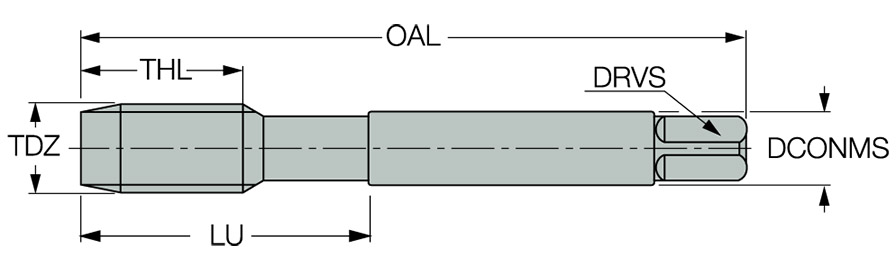

TPGN M-3.5X0.6-H HETC
Spiral Point Tap; M3.5 × 0.6 mm ; 2.205″ OAL ; 3 FL
| Thread Size | 3.5 × 0.6 | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Thread Diameter Size (TDZ) | M3.5 | Connection Diameter Machine Side (DCONMS) | 0.157″ |
| Thread Pitch (TP) | 0.6 mm | Thread Cutting Part Length (THL) | 0.394″ |
| Usable Length (LU) | 0.79″ | Drive Size (DRVS) | 0.118″ |
| Overall Length (OAL) | 2.205″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | HETC |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
Product Features
| Family Description | DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Coarse Threads, for Hardened Steel and High Temperature Alloys | Country of Origin | Hungary |
Shipping Info
Package Weight
12
