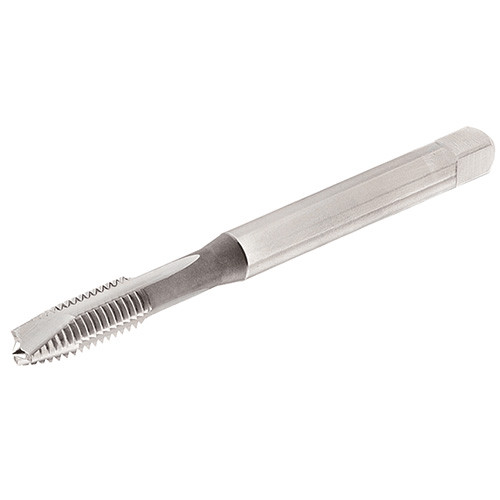

TPGN M-8X1.25-M-B HETI
Spiral Point Tap; M8 × 1.25 mm ; 3.543″ OAL ; 3 FL ; HSS ; TiN

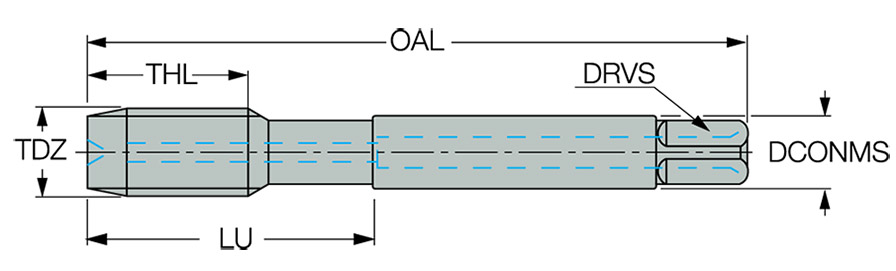

| Thread Size | 8 × 1.25 | Tool Type | Machine Blind Hole Taps |
| Thread Diameter Size (TDZ) | M8 | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Thread Pitch (TP) | 1.25 mm | Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Usable Length (LU) | 1.38″ | Thread Cutting Part Length (THL) | 0.709″ |
| Overall Length (OAL) | 3.543″ | Drive Size (DRVS) | 0.244″ |
| Coating | TiN | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | HETI |
| Cutting Edge Material | HSS | Body Material | HSS |
Product Features
| Country of Origin | Hungary |
Shipping Info
Package Weight
30
