TPGN M-6X1.0-G HETA
Spiral Point Tap; M6 × 1 mm ; 3.15″ OAL ; 3 FL

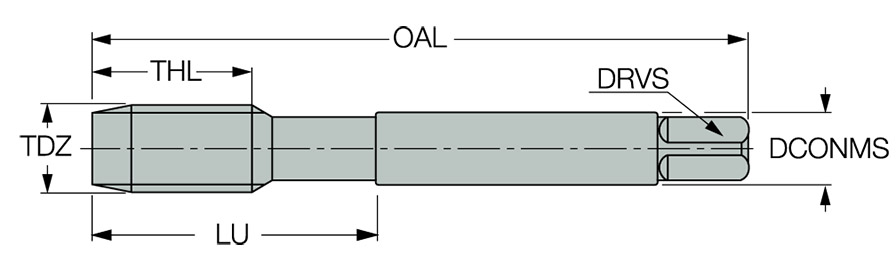

| Thread Size | 6 × 1 | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Thread Diameter Size (TDZ) | M6 | Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Thread Pitch (TP) | 1 mm | Thread Cutting Part Length (THL) | 0.63″ |
| Usable Length (LU) | 1.18″ | Drive Size (DRVS) | 0.193″ |
| Overall Length (OAL) | 3.15″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | HETA |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
Product Features
| Family Description | DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Coarse Threads for Machining Cast Iron | Country of Origin | Hungary |
Shipping Info
Package Weight
17
