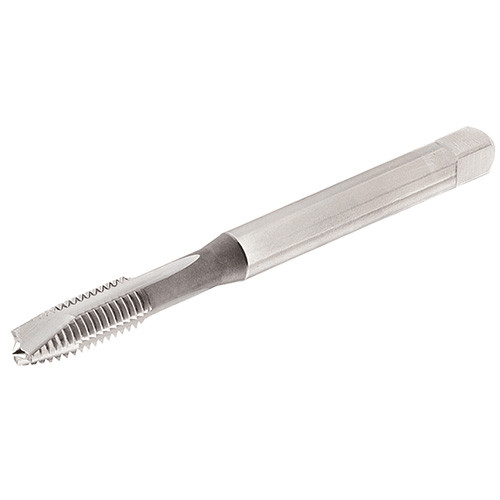

TPGN M-3X0.5-A HEDLC
Spiral Point Tap; M3 × 0.5 mm ; 2.205″ OAL ; 3 FL

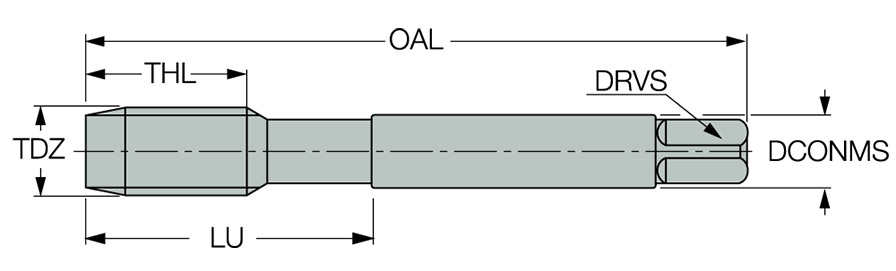

| Thread Size | 3 × 0.5 | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Thread Diameter Size (TDZ) | M3 | Connection Diameter Machine Side (DCONMS) | 0.138″ |
| Thread Pitch (TP) | 0.5 mm | Thread Cutting Part Length (THL) | 0.394″ |
| Usable Length (LU) | 0.71″ | Drive Size (DRVS) | 0.106″ |
| Overall Length (OAL) | 2.205″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | HEDLC |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
Product Features
| Family Description | DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Coarse Threads for Machining Aluminum | Country of Origin | Hungary |
Shipping Info
Package Weight
4
