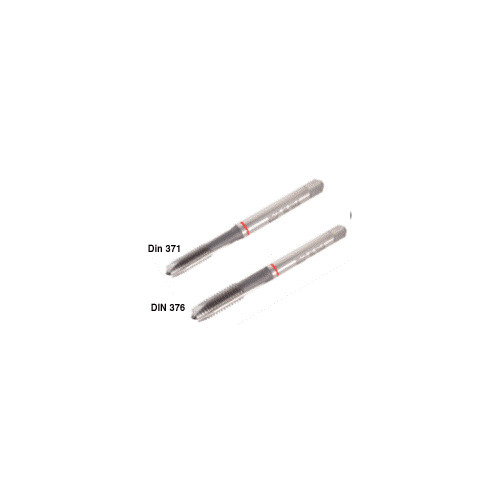

TPGN M-10X1.5-Y PMTC
Spiral Point Tap; M10 × 1.5 mm ; 3.937″ OAL ; 3 FL

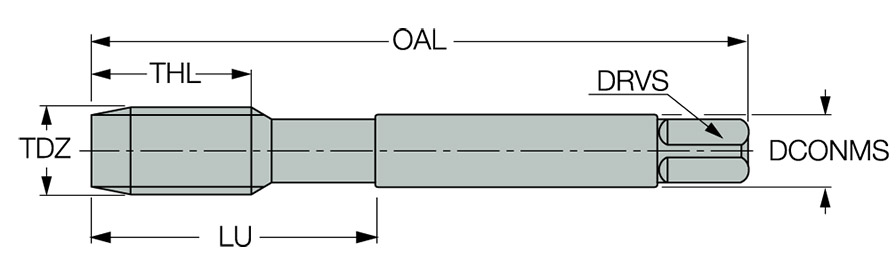

| Thread Size | 10 × 1.5 | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Thread Diameter Size (TDZ) | M10 | Connection Diameter Machine Side (DCONMS) | 0.394″ |
| Thread Pitch (TP) | 1.5 mm | Thread Cutting Part Length (THL) | 0.787″ |
| Usable Length (LU) | 1.54″ | Drive Size (DRVS) | 0.315″ |
| Overall Length (OAL) | 3.937″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | PMTC |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
Product Features
| Country of Origin | Hungary |
Shipping Info
Package Weight
65
