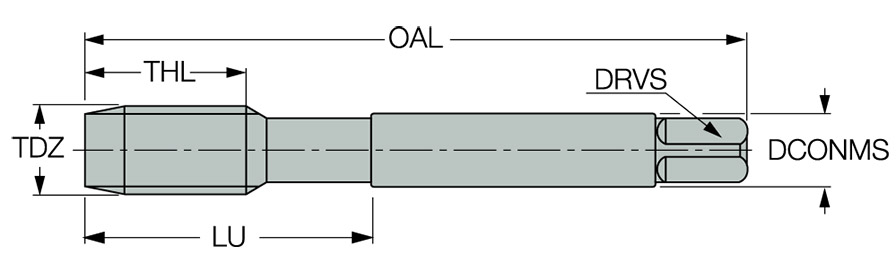

| Thread Diameter Size (TDZ) | M6 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 1 mm | Coating | Uncoated |
| Thread Standard | THFT | | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3.15″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.472″ | Grade | HE |
| Usable Length (LU) | 1.18″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Thread Form Type (THFT) | M60 |
| Flute Count (NOF) | 3 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | HSS |
| Cutting Edge Material | HSS | Drive Size (DRVS) | 0.193″ |
| Standard | DIN 371 | Thread Size | 6 × 1 |
Product Features

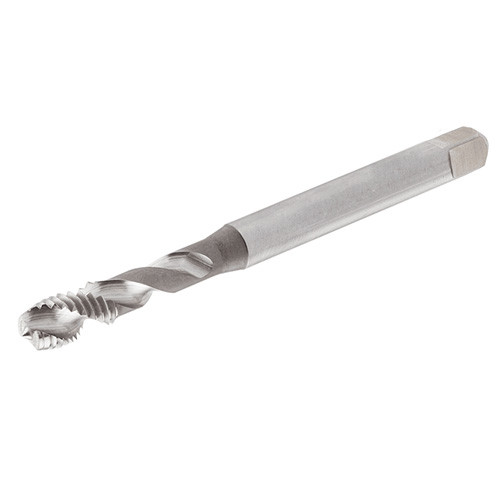

| Family Description | DIN 13 HSSE. 5% Co Spiral Flute Machine Taps ISO Metric Coarse Threads for a Wide Range of Materials | Country of Origin | Hungary |
