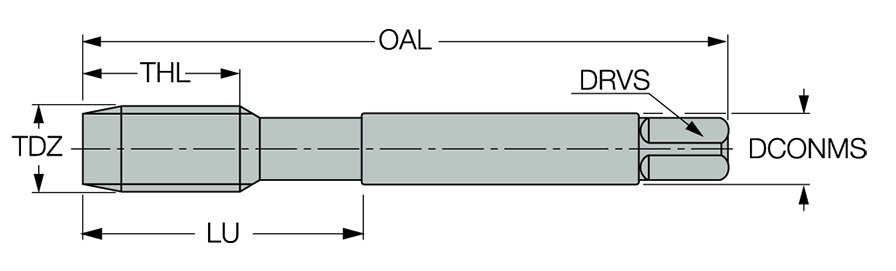

| Thread Diameter Size (TDZ) | M2.5 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 0.45 mm | Coating | Uncoated |
| Thread Standard | THFT | | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 1.968″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.236″ | Grade | HE |
| Usable Length (LU) | 0.47″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 0.11″ | Thread Form Type (THFT) | M60 |
| Flute Count (NOF) | 3 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | HSS |
| Cutting Edge Material | HSS | Drive Size (DRVS) | 0.083″ |
| Standard | DIN 371 | Thread Size | 2.5 × 0.45 |
Product Features
| Country of Origin | Hungary |
Shipping Info
Package Weight
4
