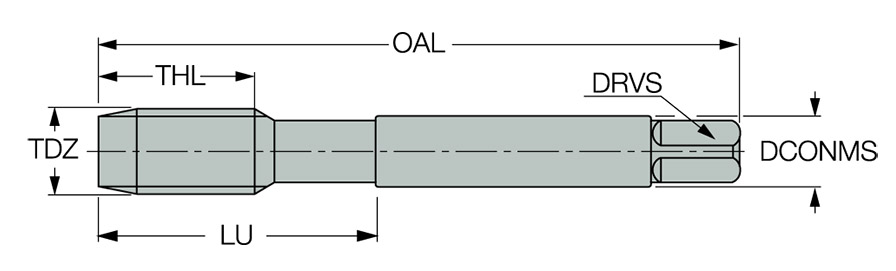

| Thread Diameter Size (TDZ) | UNF No.5 | Tool Type | Machine Blind Hole Taps |
| Threads per Inch (TPI) | 44 | Coating | Uncoated |
| Overall Length (OAL) | 2.205″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.354″ | Grade | HE |
| Usable Length (LU) | 0.71″ | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Connection Diameter Machine Side (DCONMS) | 0.138″ | Body Material | HSS |
| Flute Count (NOF) | 3 | Drive Size (DRVS) | 0.106″ |
| Cutting Edge Material | HSS | Thread Size | UNF No.5 - 44 |
| Standard | DIN 371 |
Product Features

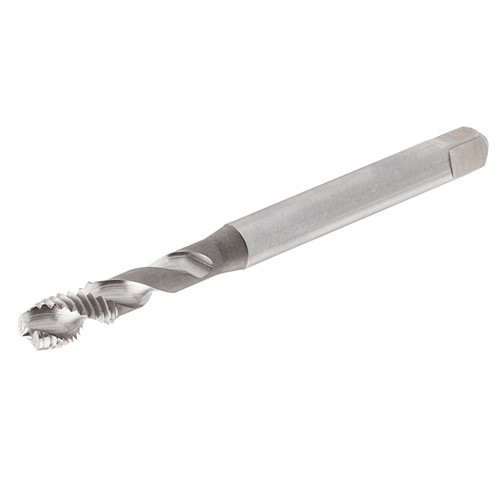

| Family Description | HSSE 5% Co Spiral Flute Machine Taps Unified Fine Threads, for a Wide Range of Materials | Country of Origin | Hungary |
Shipping Info
Package Weight
4
