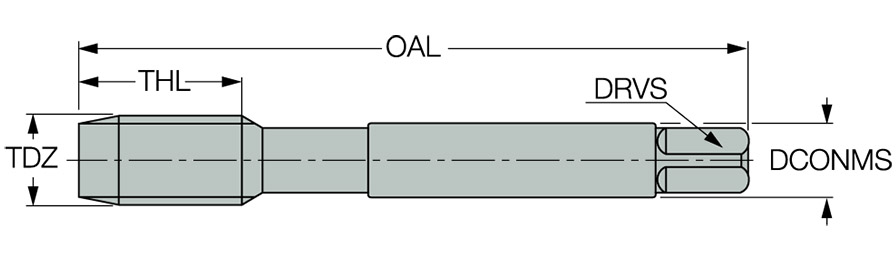

| Thread Diameter Size (TDZ) | MF22 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 1.5 mm | Coating | Uncoated |
| Overall Length (OAL) | 4.921″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.945″ | Grade | HE |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Flute Count (NOF) | 4 | Body Material | HSS |
| Cutting Edge Material | HSS | Drive Size (DRVS) | 0.571″ |
| Standard | DIN 374 | Thread Size | F22 × 1.5 |

Product Features

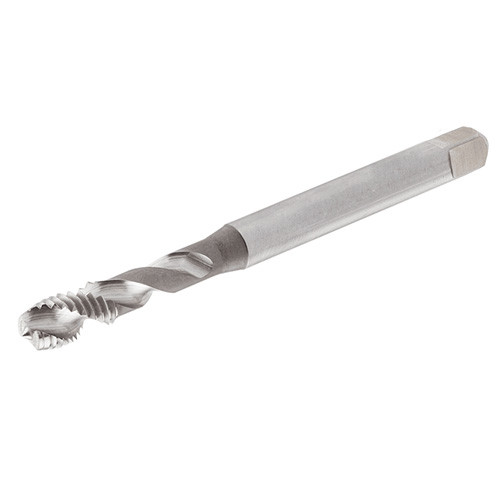

| Family Description | DIN 13 HSSE 5% Co Spiral Flute Machine Taps. ISO Metric Fine Threads for a Wide Range of Materials | Country of Origin | Hungary |
Shipping Info
Package Weight
222
