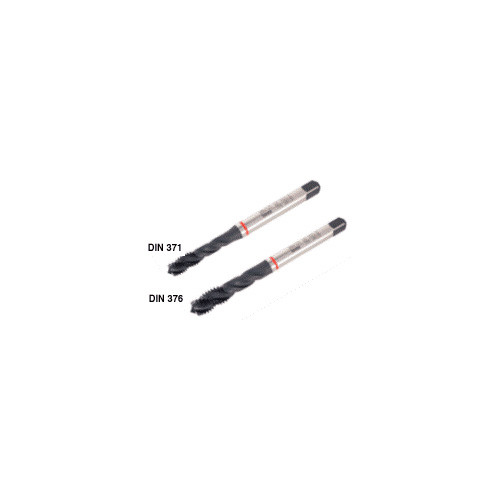

TPSN M-6X1.0-H HETC
Spiral Flute Tap; M6 × 1 mm ; 3.15″ OAL ; 3 FL

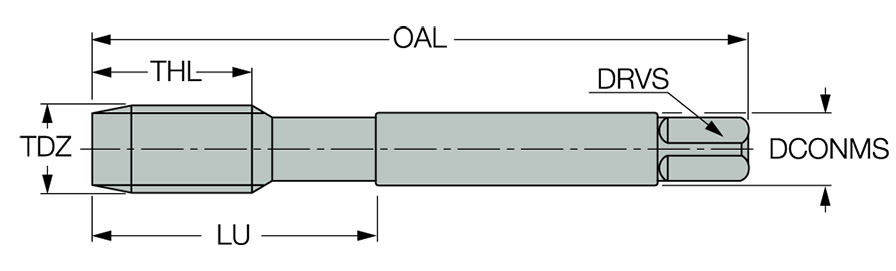

| Thread Diameter Size (TDZ) | M6 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 1 mm | Measurement Type | Inch |
| Overall Length (OAL) | 3.15″ | Grade | HETC |
| Thread Cutting Part Length (THL) | 0.472″ | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Usable Length (LU) | 1.18″ | Body Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Drive Size (DRVS) | 0.193″ |
| Flute Count (NOF) | 3 | Thread Size | 6 × 1 |
| Standard | DIN 371 |
Product Features
| Family Description | HSS right-hand 40° spiral flute machine taps - ISO metric coarse threads, according to DIN 13, for hardened steel and high temperature alloys. | Country of Origin | Hungary |
Shipping Info
Package Weight
11
