| Thread Diameter Size (TDZ) | M6 | Coating | Steam tempered |
| Thread Pitch (TP) | 1 mm | Coolant Supply Property (CSP) | External |
| Thread Standard | THFT | | Measurement Type | Inch |

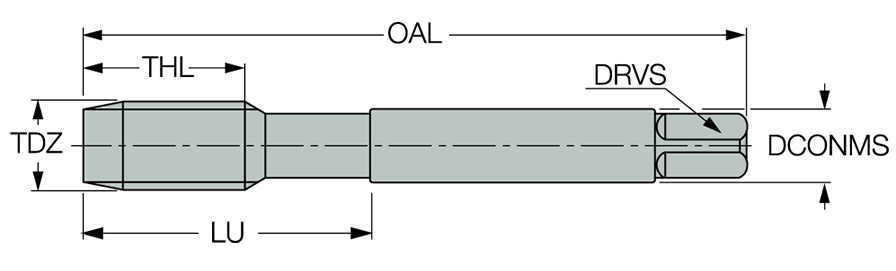

| Overall Length (OAL) | 3.15″ | Grade | PMST |
| Thread Cutting Part Length (THL) | 0.472″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 1.18″ | Thread Form Type (THFT) | M60 |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Flute Count (NOF) | 3 | Body Material | HSS |
| Flute Helix Angle (FHA) | 40 Degrees | Drive Size (DRVS) | 0.193″ |
| Standard | DIN 371 | Thread Size | 6 × 1 |
| Tool Type | Machine Blind Hole Taps |
Product Features
| Family Description | PM Right-Hand 40° Spiral Flute Machine Taps - ISO Metric Coarse Threads, According to DIN 13, for Stainless Steel | Country of Origin | Hungary |
