TPSN M-14X2.0-A HEDLC

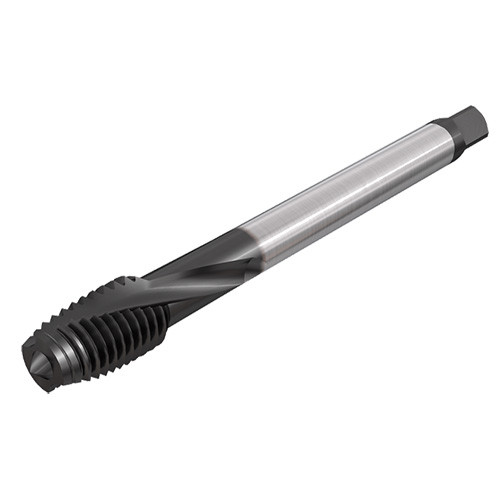

Spiral Flute Tap; M14 × 2 mm ; 4.331″ OAL ; 3 FL

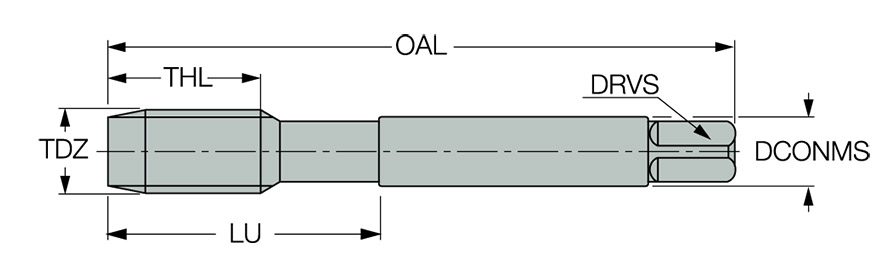

| Thread Diameter Size (TDZ) | M14 | Measurement Type | Inch |
| Thread Pitch (TP) | 2 mm | Grade | HEDLC |
| Overall Length (OAL) | 4.331″ | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Thread Cutting Part Length (THL) | 0.787″ | Body Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 0.433″ | Drive Size (DRVS) | 0.354″ |
| Flute Count (NOF) | 3 | Thread Size | 14 × 2 |
| Standard | DIN 376 |
Product Features
| Family Description | HSS-E 5% Co right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on aluminum and aluminum alloys. | Country of Origin | Hungary |
Shipping Info
Package Weight
77
