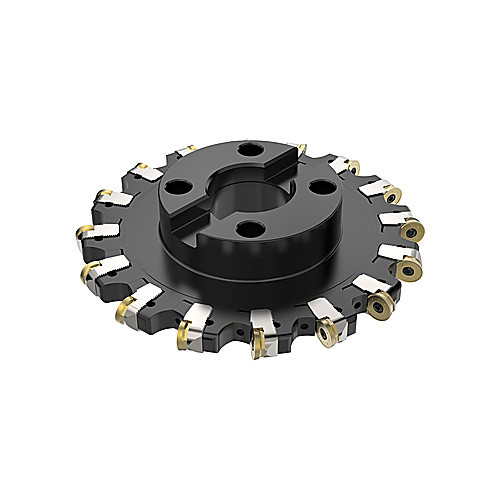

R335.25-10.00-XL1113N-R10
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10.1969″ | Coolant Supply Property (CSP) | No |
| Cutting Width (CW) | 0.3937″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Minimum (CWN) | 0.7886″ | Application | |Slotting|Side Slotting |
| Cutting Width Maximum (CWX) | 0.8268″ | Series/List # | R335.25 |
| Cutting Depth Maximum (CDX) | 2.5197″ | Measurement Type | Inch |
| Flute Count (NOF) | 16 | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2-1/2″ | Cutting Item Count (CICT) | 16 |
| Overall Length (OAL) | 2″ | Master Insert Identification (MIID) | RP..2006 |
| Shank Type | Arbor |
Product Features
| Country of Origin | Sweden |
