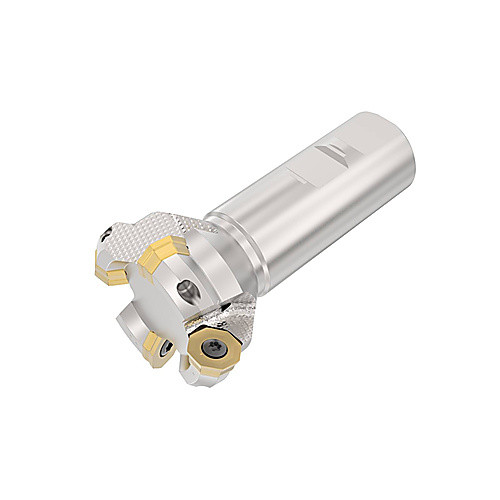

R217.43-3250.3-06-04SA B1
Indexable End Mill; 60.70 mm Dia. × 7.50 mm LOC × 32 mm Shank Dia. × 110 mm OAL × 37 mm LU ; 4 FL ; SecoWeldon Shank ; Series R217.43
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 60.70 mm | Tool Type | Face Mill |
| Cutting Diameter (DC) | 60.70 mm | Usable Length (LU) | 37 mm |
| Cutting Item Count (CICT) | 4 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 7.50 mm | Coolant Supply Property (CSP) | Internal |
| Overall Length (OAL) | 110 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | SecoWeldon | Series/List # | R217.43 |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | OO.T0605 | ROMT1605 | Shank Length (LS) | 73 mm |
Product Features
| Country of Origin | France |
