BT40SRKIN8X90

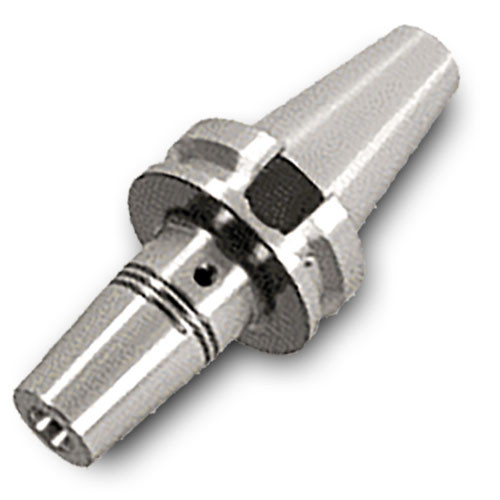

Shrink Fit Holder ; 8 mm Hole Dia. ; 150 mm OAL ; 27 mm Body Dia. ; Series SHRINK
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Thread Designation Inside (THID) | M6 |
| Shank Size (SS) | BT40 | Clamping Length Workpiece Side (LSCWS) | 36 mm |
| Body Length (LB) | 38 mm | Usable Length (LU) | 90 mm |
| Body Diameter (BD) | 27 mm | Series/List # | SHRINK |
| Body Taper End Diameter (BTED) | 21 mm | Measurement Type | Metric |
| Body Length Maximum (LBX) | 63 mm | Body Material | Steel |
| Overall Length (OAL) | 150 mm |
Product Features
| Family Description | BT40 balanced G2.5@25,000RPM BT50 balanced G2.5@20,000RPM | Country of Origin | Israel |
Shipping Info
Package Weight
2.723
