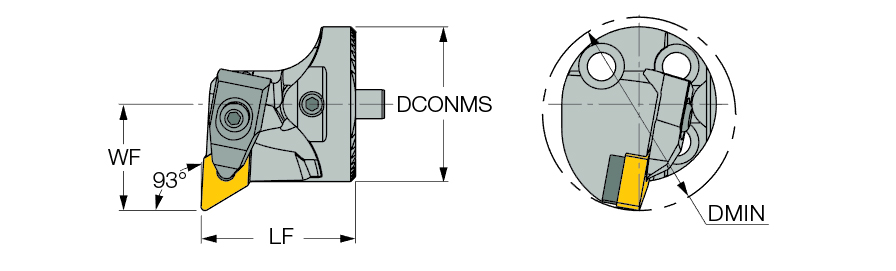

AVC-D40-DDUNR-1504T
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 1.496″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Functional Width (WF) | 1.063″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Master Insert Identification (MIID) | DN.. 4 | Rake Angle Radial (GAMF) | 0 Degrees |
| Minimum Bore Diameter (DMIN) | 1.968″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Interchangeable boring heads carrying 55° rhombic inserts. | Country of Origin | China |
| Remarks | Remark for tools with a -15T suffix only: For DNMG 442 (.250 thick) inserts use Seat, 5505710: RDT 433 For DNMG 432 (.187 thick) inserts use Seat, 5505709: RDT 443 |
Shipping Info
Package Weight
202
