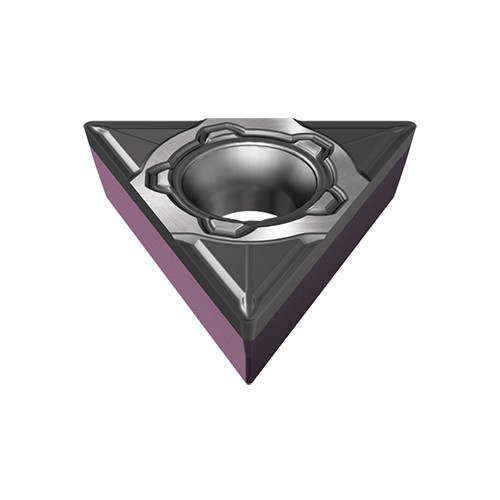

TCMT 3-2-M3M IC6015

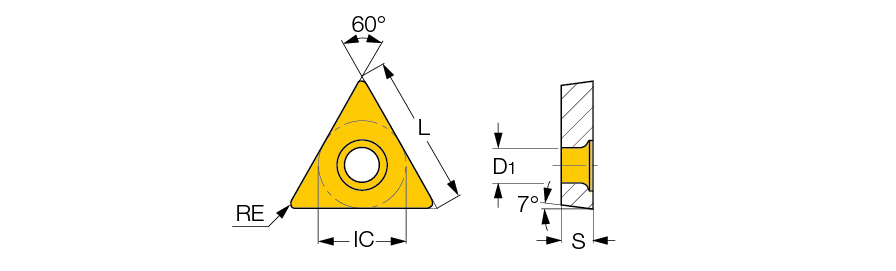

| Applicable Material | | Stainless Steel | | Fixing Hole Diameter (D1) | 0.173″ |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | ITSBORE System | | Tool Type | Turn Positive Inserts |
| Insert Style | TCMT | Min D.O.C. | 0.031″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 3-2 | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | M3M |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC6015 |
Product Features
| Family Description | Triangular 7° positive flank inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
