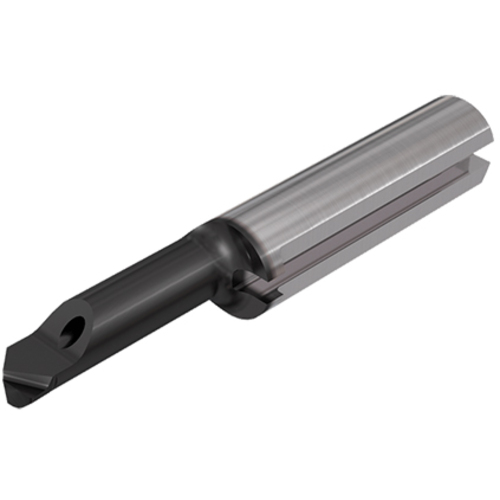

PICJ RT90D50R15-10 IC908
Boring Bar; 0.197″ Shank Dia. × 0.197″ Min Bore Dia. × 0.02″ Max Bore Depth × 0.3543″ LU × 0.984″ LF ; 0.006″ Corner Radius ; Carbide ; TiAlN

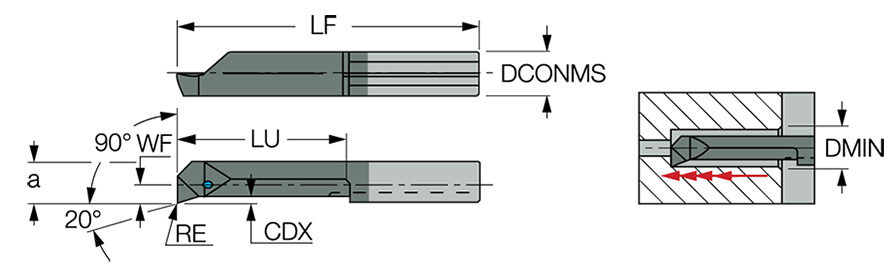

| Connection Diameter Machine Side (DCONMS) | 0.197″ | Corner Radius (RE) | 0.006″ |
| Minimum Bore Diameter (DMIN) | 0.197″ | Cutting Depth Maximum (CDX) | 0.02″ |
| Functional Length (LF) | 0.984″ | Functional Width (WF) | 0.075″ |
| Cutting Direction (HAND) | Right Hand | Usable Length (LU) | 0.3543″ |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Material | Carbide |
| Application | | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Front End Width (a) | 0.173″ |
Product Features
| Family Description | Inserts with inner coolant channel for internal turning and profiling, Dmin .011″ | Country of Origin | Israel |
| Remarks | PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
Package Weight
0.020
