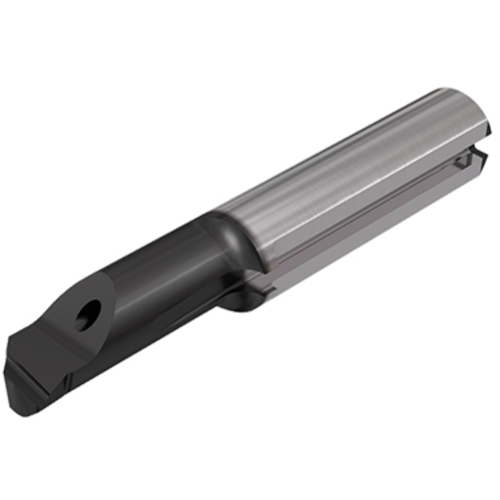

PICJ RT20D40R10-10C IC908
Boring Bar; 0.157″ Shank Dia. × 0.157″ Min Bore Dia. × 0.012″ Max Bore Depth × 0.945″ LF ; 0.0039″ Corner Radius ; Carbide ; TiAlN

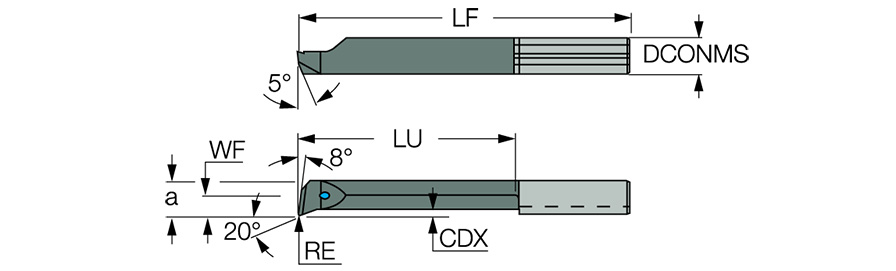

| Connection Diameter Machine Side (DCONMS) | 0.157″ | Front End Width (a) | 0.138″ |
| Minimum Bore Diameter (DMIN) | 0.157″ | Corner Radius (RE) | 0.0039″ |
| Functional Length (LF) | 0.945″ | Cutting Depth Maximum (CDX) | 0.012″ |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 0.059″ |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Material | Carbide |
| Application | | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
Product Features
| Family Description | PICCO-JETCUT inserts with chipformers and inner coolant channel, for internal boring and profiling | Country of Origin | Israel |
| Remarks | All left-hand inserts on request PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
Package Weight
6
