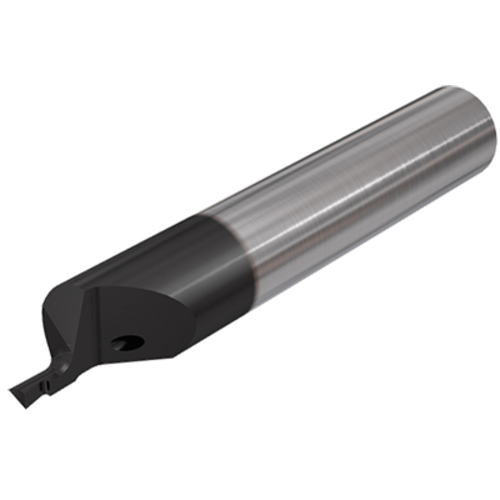

PICJ RF20D6T4.0-20 IC908
Tool; 0.236″ Shank Dia. × 0.079″ CW × 0.157″ Max Depth × 1.378″ OAL ; Carbide ; TiAlN ; IC908
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Tool Type | Face Solid, Grooving &Turning grooving |
| Cutting Width (CW) | 0.079″ | Max. Face Grooving Feed (ffg(max)) | 0.0024 ″/rev |
| Cutting Depth Maximum (CDX) | 0.157″ | Min. Face Grooving Feed (ffg(min)) | 0.0008 ″/rev |
| Overall Length (OAL) | 1.378″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.236″ |
| Cutting Edge Material | Carbide | Front End Width (a) | 0.205″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Overhang Minimum (OHN) | 0.79″ |
| Application | | Face Grooving Along Shaft | |
Product Features
| Family Description | PICCO-JETCUT inserts with an internal coolant channel for grooving along shaft Dmin .236″ | Country of Origin | Israel |
| Remarks | Only right-hand inserts are available as standard, left-hand inserts on request All carbide inserts are with sharp corners PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
Package Weight
81
