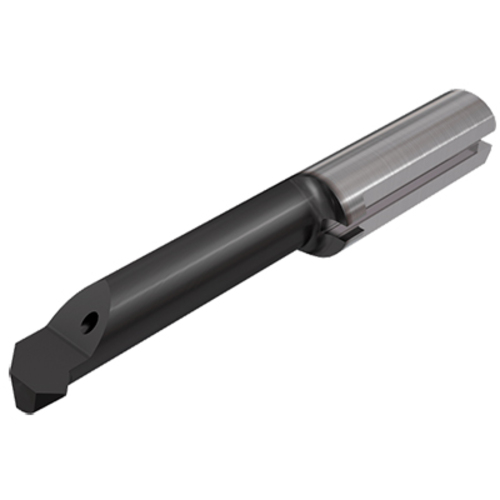

PICJ RT45D50R20-15 IC908

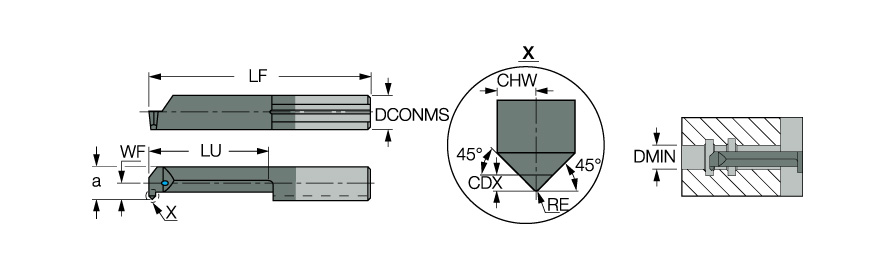

Tool; 0.197″ Shank Dia. × 0.028″ Max Depth × 1.181″ OAL × 0.0079″ Corner Radius ; Carbide ; Right Hand ; TiAlN ; IC908
| Connection Diameter Machine Side (DCONMS) | 0.197″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Application | | Int. Turn & Chamfering | |
| Cutting Depth Maximum (CDX) | 0.028″ | Tool Type | Solid Carbide Turn Tool |
| Overall Length (OAL) | 1.181″ | Minimum Bore Diameter (DMIN) | 0.197″ |
| Cutting Direction (HAND) | Right Hand | Front End Width (a) | 0.173″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | Inserts with inner coolant channel for internal turning and 45° chamfering, Dmin .197″ | Country of Origin | Israel |
| Remarks | PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
Package Weight
9
