PICJ RT2020D30R10-10 IC908

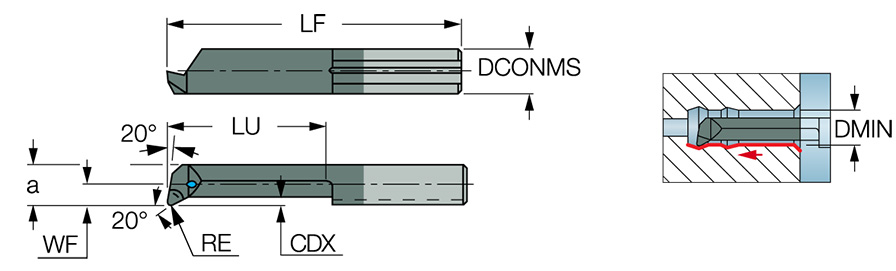

Tool; 0.157″ Shank Dia. × 0.008″ Max Depth × 0.945″ OAL × 0.004″ Corner Radius ; Carbide ; Right Hand ; TiAlN ; IC908
| Connection Diameter Machine Side (DCONMS) | 0.157″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.004″ | Application | | Int. Boring and Profiling | |
| Cutting Depth Maximum (CDX) | 0.008″ | Tool Type | Solid, Turning & Grooving |
| Overall Length (OAL) | 0.945″ | Minimum Bore Diameter (DMIN) | 0.11″ |
| Cutting Direction (HAND) | Right Hand | Front End Width (a) | 0.102″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | Inserts with inner coolant channel for internal turning and chamfering next to the bottom of blind holes | Country of Origin | Israel |
| Remarks | PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
Package Weight
69
