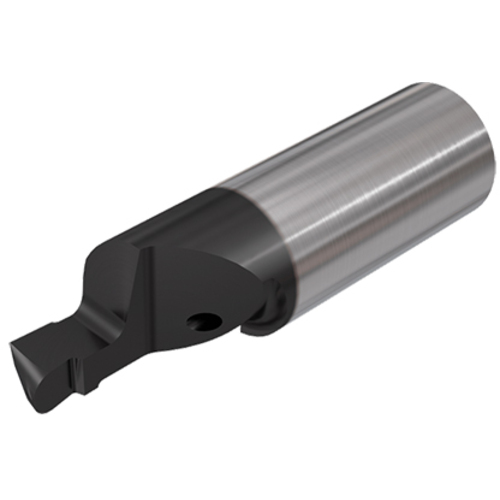

PICJ RFP16D8T3-10 IC908
Tool; 0.276″ Shank Dia. × 0.063″ CW × 0.118″ Max Depth × 1.024″ OAL × 0.0315″ Corner Radius ; Carbide ; Right Hand ; TiAlN ; IC908
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Application | | Face Grooving | Int. Face Grooving | |
| Corner Radius (RE) | 0.0315″ | Tool Type | Face Solid, Grooving &Turning grooving |
| Cutting Width (CW) | 0.063″ | Max. Face Grooving Feed (ffg(max)) | 0.002 ″/rev |
| Cutting Depth Maximum (CDX) | 0.118″ | Min. Face Grooving Feed (ffg(min)) | 0.0004 ″/rev |
| Overall Length (OAL) | 1.024″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.315″ |
| Cutting Direction (HAND) | Right Hand | Front End Width (a) | 0.232″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Overhang Minimum (OHN) | 0.43″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | PICCO-JETCUT Inserts with internal coolant channel for profile face grooving at Dmin .315″ | Country of Origin | Israel |
| Remarks | Only right-hand inserts are available as standard, left-hand inserts on request PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
Package Weight
13
