RCEI500J6R068S SX9

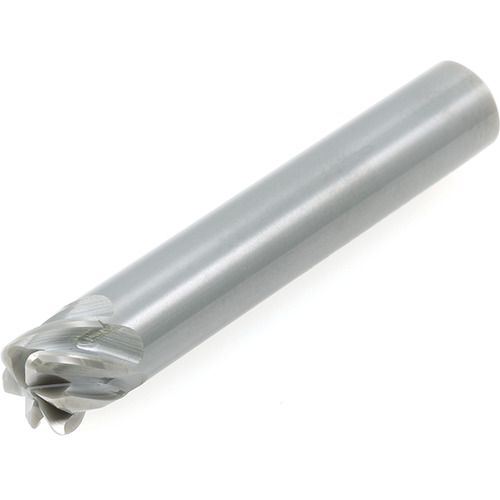

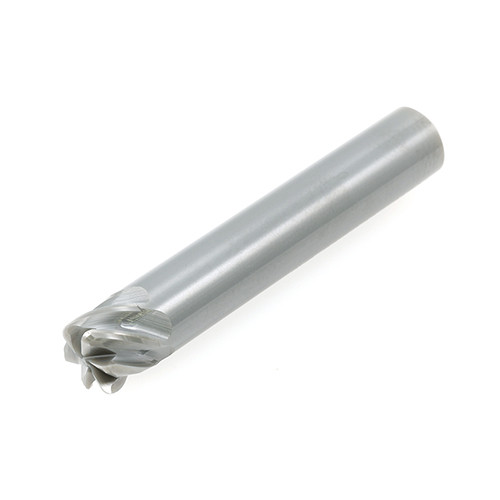

SQ End Mill; 1/2″ Dia. × 3/8″ LOC × 1/2″ Shank Dia. ; 0.0681″ RE ; 6 FL ; Ceramic
| Cutting Diameter (DC) | 1/2″ | Application | | For HRSA material | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.0681″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Cutting Edge Material | Ceramic | Grade | SX9 |
| Flute Count (NOF) | 6 | Peripheral Effective Cutting Edge Count (ZEFP) | 6″ |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Inch |
| Applicable Material | | Super-Alloys / Titanium | |
Product Features
| Country of Origin | Japan |
