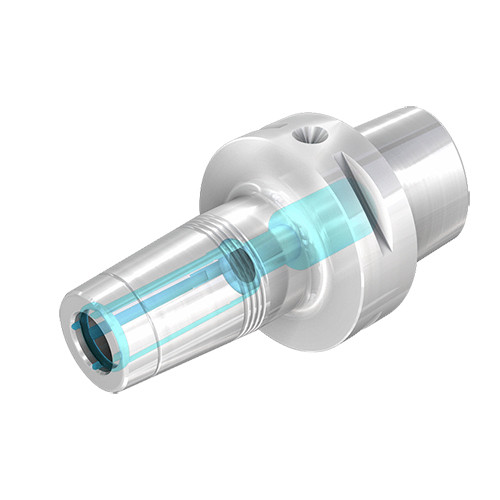

C6 SRKIN 1X3.55 CX
Shrink Fit Holder ; 1″ Hole Dia. ; 2.48″ Shank Dia. ; 2.09″ Body Dia. ; Series SHRINK

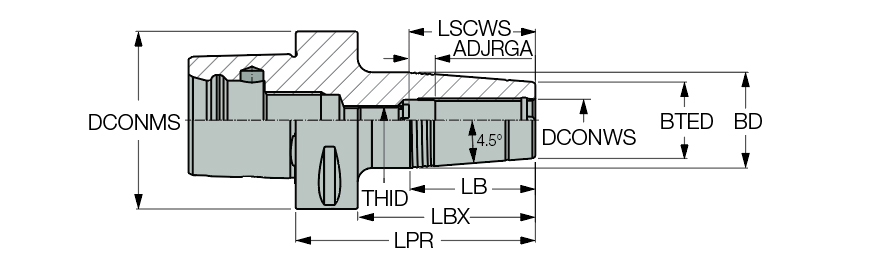

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Protruding Length (LPR) | 3.55″ |
| Connection Diameter Workpiece Side (DCONWS) | 1″ | Body Length Maximum (LBX) | 2.684″ |
| Shank Size (SS) | 63 | Clamping Length Workpiece Side (LSCWS) | 2.283″ |
| Body Length (LB) | 2.252″ | Series/List # | SHRINK |
| Body Diameter (BD) | 2.09″ | Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 1.732″ | Body Material | Steel |
Product Features
| Family Description | Thermal shrink chucks with CAMFIX (ISO 26623-1) tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance | Country of Origin | Israel |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info Preset screw CX allows supply of coolant via JET groove - do not remove |
Shipping Info
Package Weight
3.492
