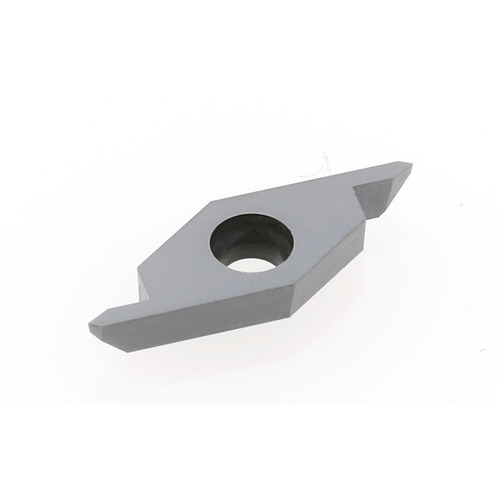

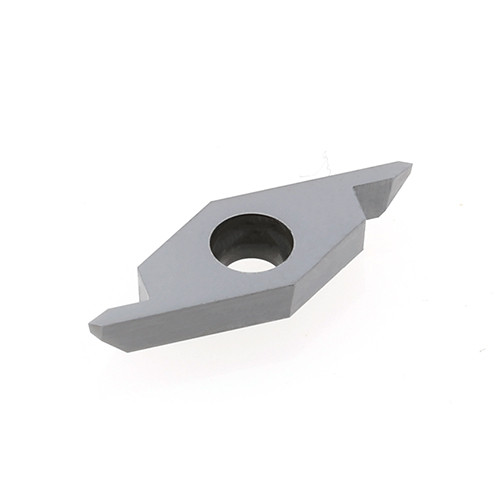

CSVT11FLP60-035A VM1
| Applicable Material | | Steel | Stainless Steel | | Coating | TiCN |
| Application | | Inserts for miniature | | Grade | VM1 |
| Corner Radius (RE) | 0.03 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 2.38 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 35 Degrees | Cutting Depth Maximum (CDX) | 3 mm |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Japan |
