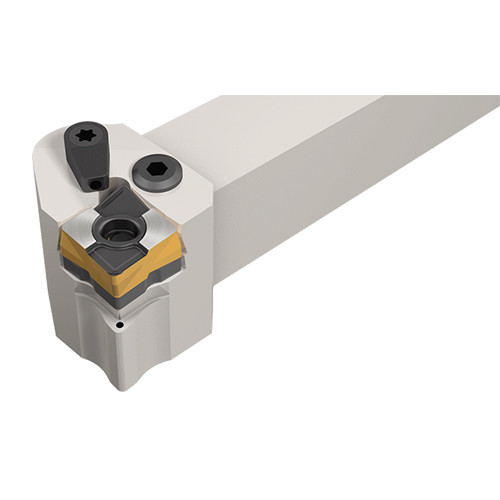

PCLXR 12-3X-JHP-MC
Turning Toolholder; 3.543″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 0.79″ LH ; Right Hand ; Steel

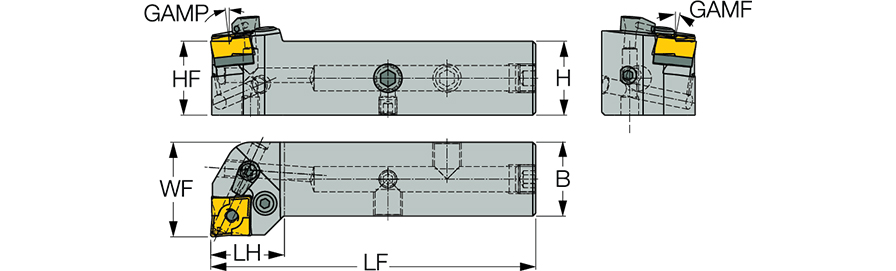

| Shank Height (H) | 3/4″ | Master Insert Identification (MIID) | CXMG 0904 |
| Shank Width (B) | 3/4″ | Application | | Ext. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 3.543″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 3.543″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 0.79″ | Body Material | Steel |
| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.368″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Lever lock tools with channels for high-pressure coolant carrying CXMG 80° rhombic inserts.The tools were designed to be clamped in VDI and CAMFIX shanks with bottom coolant-fed toolholders. | Country of Origin | Israel |
Shipping Info
Package Weight
0.631
