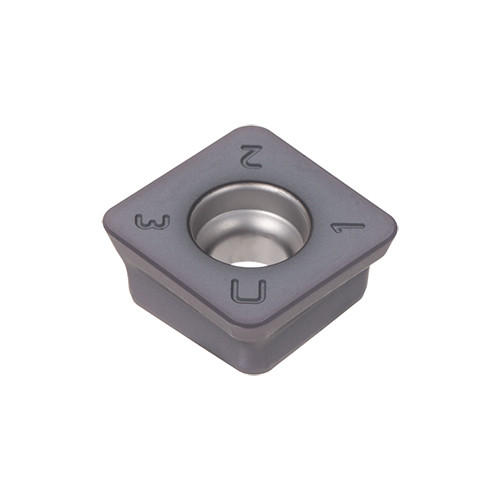

SWMW1506USR AH8015
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH8015 |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

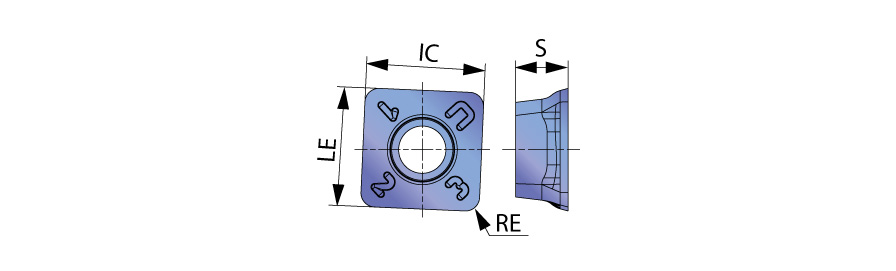

| Corner Radius (RE) | 0.0787″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.079″ | Number of Cutting Edges | 4 |
| Insert Width (W1) | 0.635″ | Cutting Edge Effective Length (LE) | 0.635″ |
| Inscribed Circle Diameter (IC) | 0.635″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.268″ | Body Material | Carbide |
| Coating | AlTiN |
Product Features
| Family Description | Single-sided square insert with flat top chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
19.3
