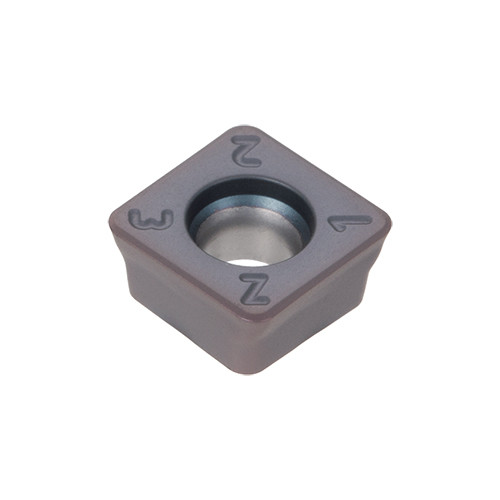

SWMW0904ZSR AH3225
| Applicable Material | | Steel | Stainless Steel | | Coating | TiAlSiCrN |
| Application | | High Feed Milling | | Grade | AH3225 |

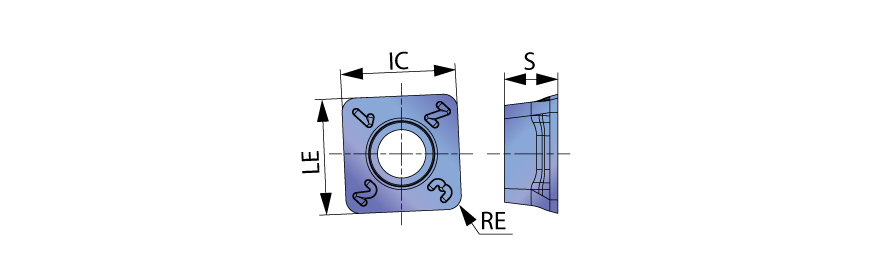

| Corner Radius (RE) | 0.0394″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.059″ | Number of Cutting Edges | 4 |
| Insert Width (W1) | 0.339″ | Cutting Edge Effective Length (LE) | 0.339″ |
| Inscribed Circle Diameter (IC) | 0.339″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.157″ | Body Material | Carbide |
Product Features
| Family Description | Single-sided square insert with flat top chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0
