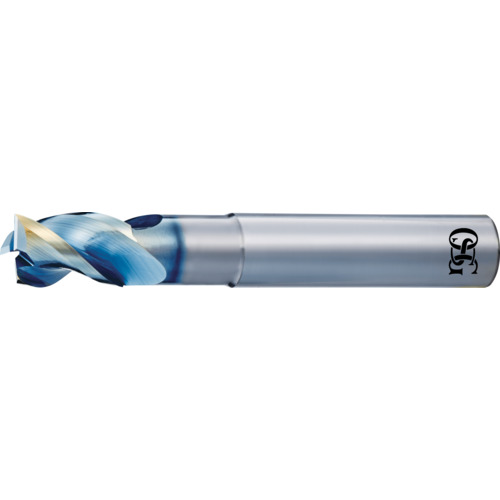

16MMX24MM 3FL AE-TS-N
| Cutting Diameter (DC) | 16 mm | Shank Standard | h6 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 24 mm | Decimal Equivalent | 0.6299″ |
| Overall Length (OAL) | 110 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Series/List # | 8735 |
| Coating | DLC | Shank Size (SS) | 16 mm |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 41 Degrees | Single / Double End | Single End |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Square | Cutting Diameter Tolerance | +0.0000/-0.0020″ |
| Neck Diameter (DN) | 15.7 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.63
