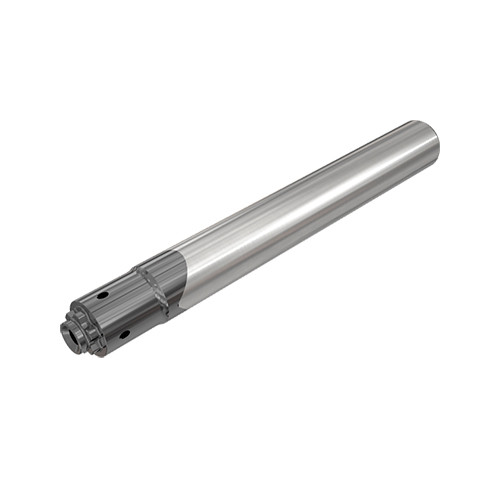

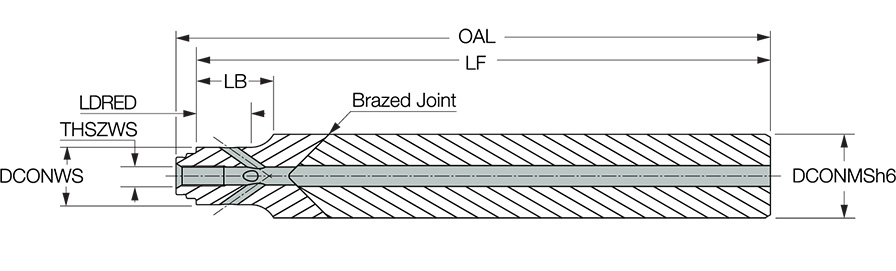

SD S-A-L160-C25-C-H-SP19
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M6x0.5 | Functional Length (LF) | 160 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 160 mm | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Length (LB) | 24.6 mm | Reduced Body Diameter Length (LDRED) | 20 mm |
Product Features
| Family Description | Stepped cylindrical carbide shanks with brazed steel segment and internal coolant channels, for interchangeable solid carbide milling heads. | Country of Origin | Israel |
| Remarks | Apply lubricant to the clamping screw |
Shipping Info
Package Weight
1064
