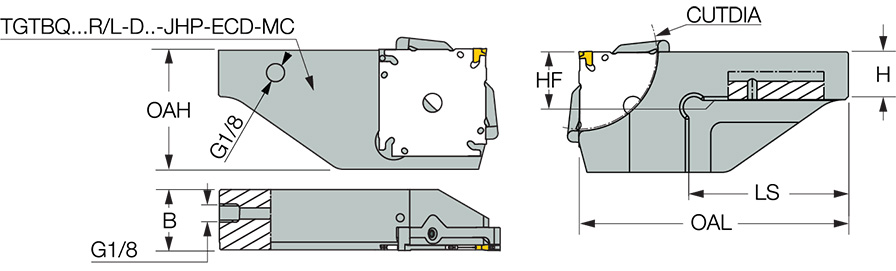

| Shank Height (H) | 25 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 65 mm |
| Shank Width (B) | 31.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 127 mm | Measurement Type | Metric |
| Overall Height (OAH) | 55 mm | Tool Assembly Length (LTA) | 62 mm |
| Body Material | Steel |
Product Features

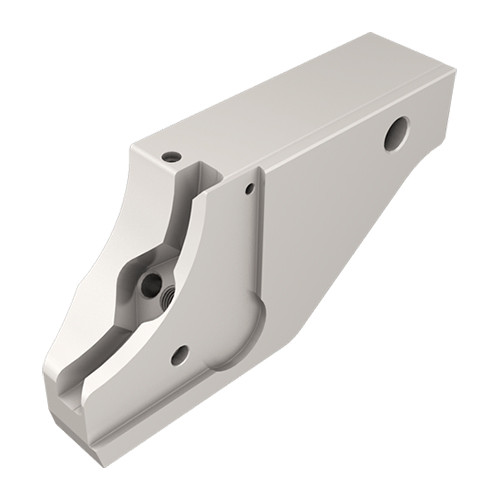

| Family Description | Tool blocks for square TANG-F-GRIP (TGAQ-ECD) parting and grooving adapters for high-pressure coolant. | Country of Origin | Israel |
| Remarks | The tool cannot be used for grooving applications when the workpiece diameter is larger than 118mm A separate crown for each insert width should be ordered separately |
Shipping Info
Package Weight
998
