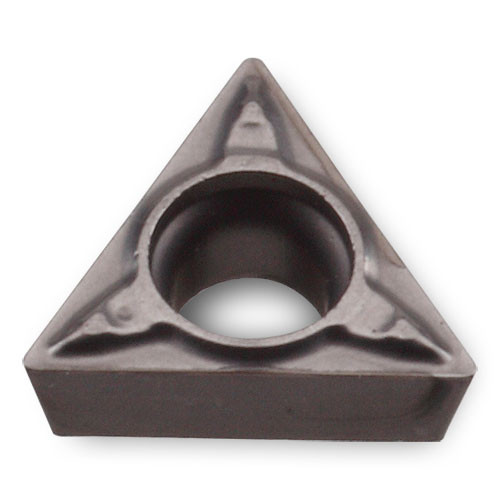

TPMT222FA TT5100
| Corner Radius (RE) | 0.016″ | Min. Turning Feed (ft(min)) | 0.003″ |
| Cutting Edge Length (L) | 0.433″ | Max. Turning Feed (ft(max)) | 0.01″ |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Number of Cutting Edges | 3 |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Direction (HAND) | Neutral |
| Fixing Hole Diameter (D1) | 0.134″ | Measurement Type | Inch |
| Min D.O.C. | 0.012″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.059″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.006
