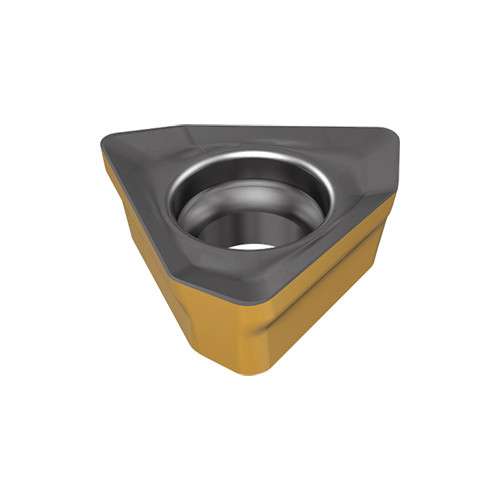

HM390 TPKT 050208PDR IC808
Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC808 |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Insert Length (INSL) | 0.207″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.1378″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Inscribed Circle Diameter (IC) | 0.155″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.083″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.024″ | Body Material | Carbide |
| Coating | TiAlN+AlTiN+TiN |
Product Features
| Family Description | Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications. | Country of Origin | Israel |
