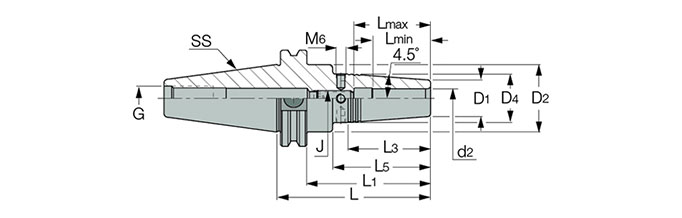

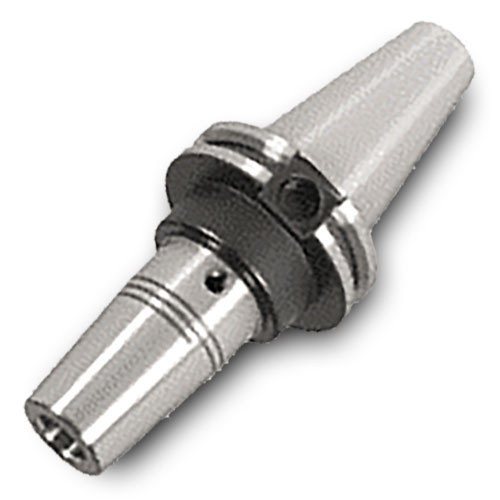

CAT40SRKIN3/8X3.750
Shrink Fit Holder ; 3/8″ Hole Dia. ; 150 mm OAL ; 1.26″ Body Dia. ; Series SHRINK
| Connection Diameter Workpiece Side (DCONWS) | 3/8″ | Thread Designation Inside (THID) | M8 |
| Shank Size (SS) | CAT40 | Clamping Length Workpiece Side (LSCWS) | 1.65″ |
| Body Length (LB) | 2″ | Nose Diameter | 0.945″ |
| Body Length_2 (LB_2) | 2.37″ | Usable Length (LU) | 3-3/4″ |
| Body Diameter (BD) | 1.26″ | Series/List # | SHRINK |
| Body Taper End Diameter (BTED) | 0.945″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 3″ | Body Material | Steel |
| Overall Length (OAL) | 150 mm |
Product Features
| Family Description | Balanced G2.5@25,000RPM | Country of Origin | Israel |
Shipping Info
Package Weight
2.908
