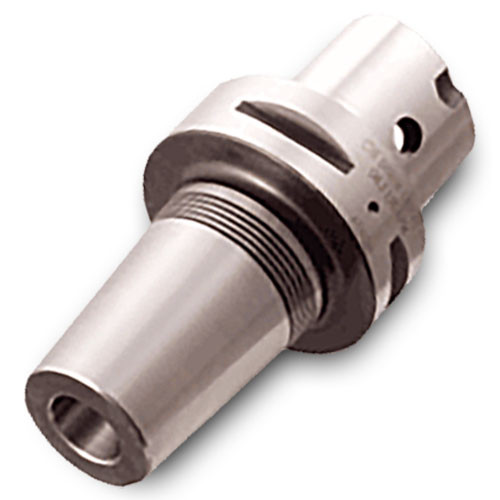

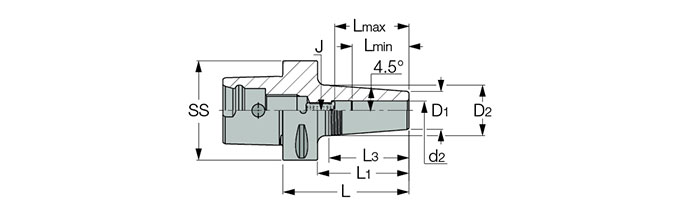

C6SRKIN3/4X3.35
Shrink Fit Holder ; 3/4″ Hole Dia. ; 150 mm OAL ; 1.654″ Body Dia. ; Series SHRINK
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Thread Designation Inside (THID) | M16 |
| Shank Size (SS) | C6 | Clamping Length Workpiece Side (LSCWS) | 2.05″ |
| Body Length (LB) | 2-1/4″ | Nose Diameter | 1.299″ |
| Body Diameter (BD) | 1.654″ | Usable Length (LU) | 3.35″ |
| Body Taper End Diameter (BTED) | 1.299″ | Series/List # | SHRINK |
| Body Length Maximum (LBX) | 2.484″ | Measurement Type | Inch |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
Product Features
| Family Description | For use with Induction style heating units only | Country of Origin | Israel |
Shipping Info
Package Weight
2.778
