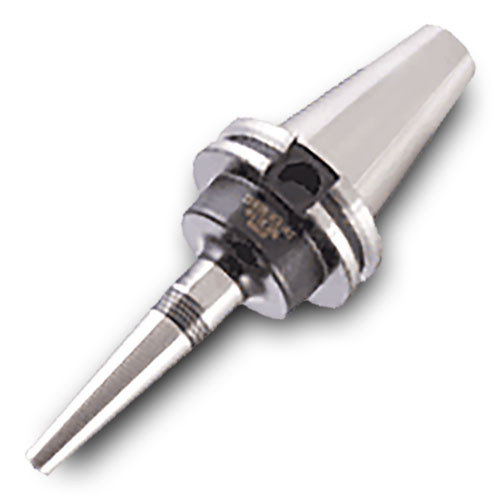

CAT40SRK1/4X3.250
Shrink Fit Holder ; 1/4″ Hole Dia. ; 150 mm OAL ; 0.787″ Body Dia. ; Series SHRINK
| Connection Diameter Workpiece Side (DCONWS) | 1/4″ | Thread Designation Inside (THID) | M8 |
| Shank Size (SS) | CAT40 | Clamping Length Workpiece Side (LSCWS) | 0.95″ |
| Body Length (LB) | 2.524″ | Nose Diameter | 0.433″ |
| Body Length_2 (LB_2) | 3-1/4″ | Usable Length (LU) | 4.63″ |
| Body Diameter (BD) | 0.787″ | Series/List # | SHRINK |
| Body Taper End Diameter (BTED) | 0.433″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 2.88″ | Body Material | Steel |
| Overall Length (OAL) | 150 mm |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
2.568
