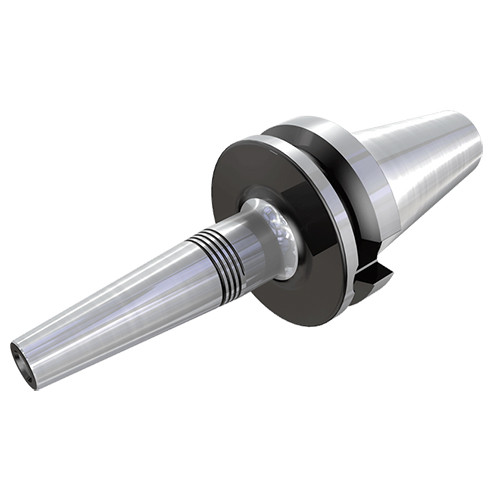

BT30 SRK10X50
Shrink Fit Holder ; 10 mm Hole Dia. ; 30 mm Shank Dia. ; 120.4 mm OAL ; Series SHRINK

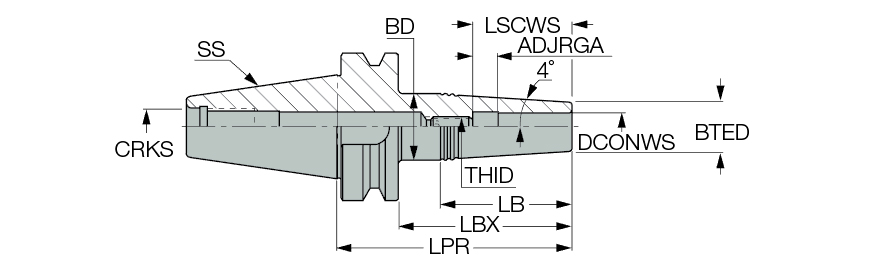

| Connection Diameter Machine Side (DCONMS) | 30 mm | Overall Length (OAL) | 120.4 mm |
| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Clamping Length Workpiece Side (LSCWS) | 40 mm |
| Shank Size (SS) | 30 | Series/List # | SHRINK |
| Body Length (LB) | 42.8 mm | Measurement Type | Metric |
| Body Diameter (BD) | 22 mm | Tool Type | BT |
| Body Taper End Diameter (BTED) | 16 mm | Body Material | Steel |
| Protruding Length (LPR) | 72 mm | Connection Code Machine Side (CCMS) | BT |
| Body Length Maximum (LBX) | 50 mm |
Product Features
| Family Description | Thermal shrink chucks with BT MAS 403 form AD taper shanks, for carbide tools. | Country of Origin | Israel |
| Remarks | For shrink units information, Click on More Info. Preset screw without coolant hole For through tool coolant, preset screw must be removed |
Shipping Info
Package Weight
1.175
