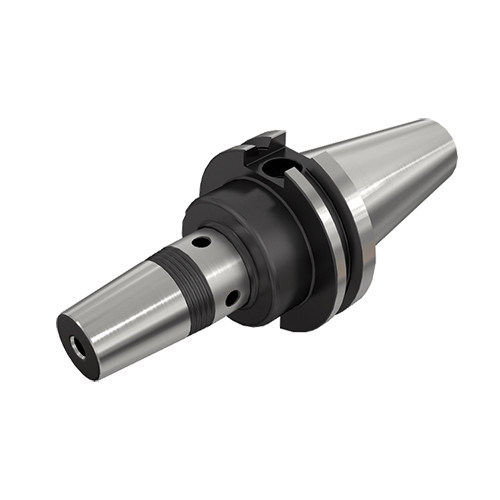

CAT40 FC SRKIN 1/2X3.75
Shrink Fit Holder ; 1/2″ Hole Dia. ; 1.26″ Body Dia. ; Series SHRINK

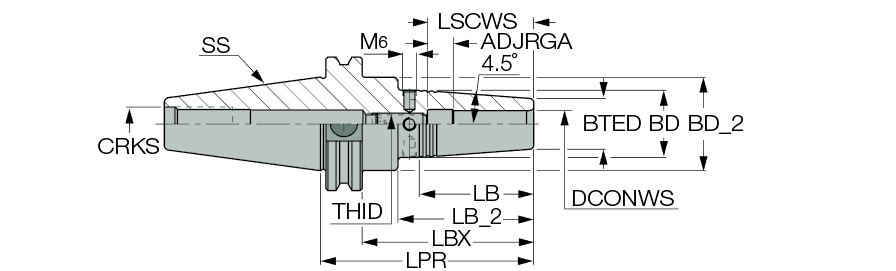

| Connection Diameter Workpiece Side (DCONWS) | 1/2″ | Protruding Length (LPR) | 3-3/4″ |
| Shank Size (SS) | 40 | Body Length Maximum (LBX) | 3″ |
| Body Length (LB) | 2″ | Clamping Length Workpiece Side (LSCWS) | 1.85″ |
| Body Length_2 (LB_2) | 2.37″ | Series/List # | SHRINK |
| Body Diameter (BD) | 1.26″ | Measurement Type | Inch |
| Body Diameter_2 (BD_2) | 1.752″ | Body Material | Steel |
| Body Taper End Diameter (BTED) | 0.945″ | Connection Code Machine Side (CCMS) | CAT |
Product Features
| Family Description | Thermal shrink chucks with Caterpillar face contact AD tapered shanks, for solid carbide HSS and steel tools. | Country of Origin | Israel |
Shipping Info
Package Weight
2.903
