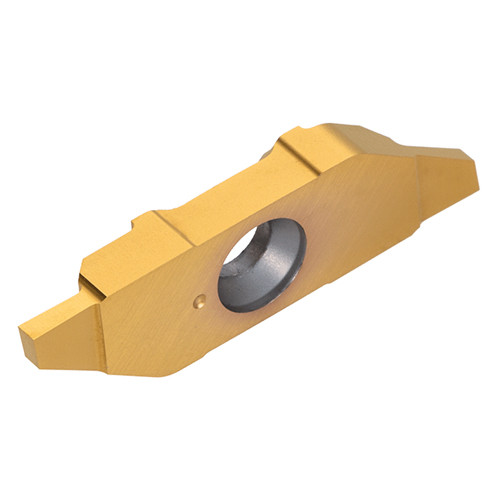

JVGN30L150F000 SH7025
Grooving Insert; 0.059″ CW × 0.118″ Max Depth × 0.22″ Thickness ; Carbide ; SH7025 ; TiAlN+TiCN

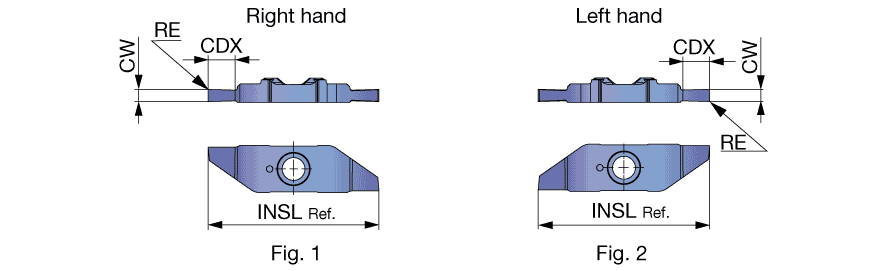

| Cutting Width (CW) | 0.059″ | Application | | Inserts | |
| Corner Radius (RE) | 0″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 0.118″ | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.22″ | Measurement Type | Inch |
| Coating | TiAlN+TiCN | Tool Type | Parting & Grooving Inserts |
| Grade | SH7025 | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Double-ended insert for grooving, sharp edge. | Country of Origin | Japan |
