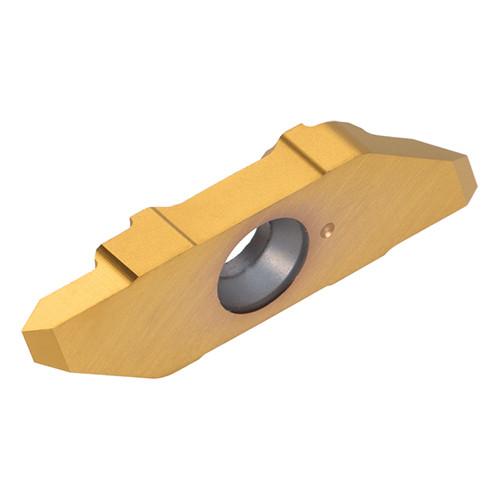

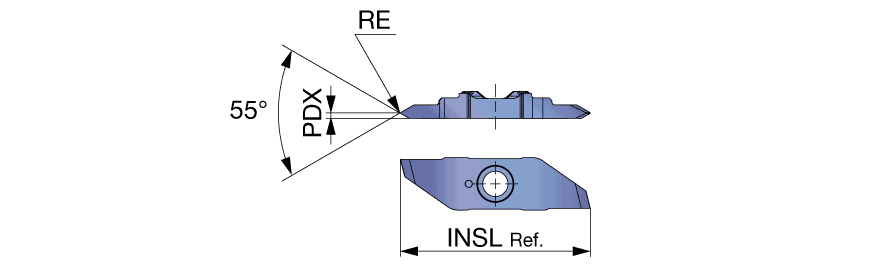

JVTN55R005FA SH7025
| Corner Radius (RE) | 0.002″ | Thread Pitch Minimum (TPN) | 0.6 mm |
| Insert Thickness (S) | 0.22″ | Thread Pitch Maximum (TPX) | 1.5 mm |
| Grade | SH7025 | Threads per Inch Maximum (TPIX) | 42.3 |
| Coating | TiAlN+TiCN | Threads per Inch Minimum (TPIN) | 16.9 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Inserts | | Insert Length (INSL) | 0.827″ |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | Double-ended threading insert, external 55 deg thread angle, partial profile, sharp edge. | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
