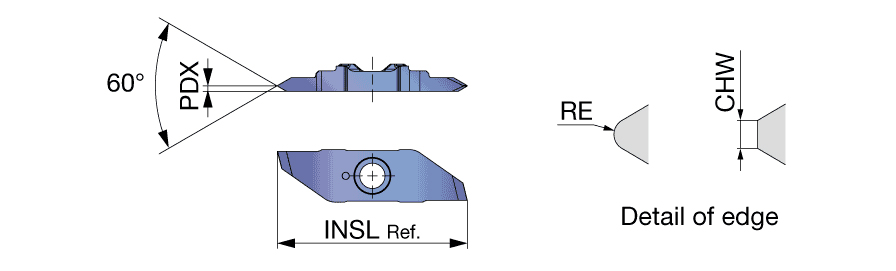

JVTN60R000FA SH7025
| Insert Thickness (S) | 0.22″ | Thread Pitch Minimum (TPN) | 0.2 mm |
| Grade | SH7025 | Thread Pitch Maximum (TPX) | 0.4 mm |
| Coating | TiAlN+TiCN | Threads per Inch Maximum (TPIX) | 127 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 63.5 |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Application | | Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | | Insert Length (INSL) | 0.827″ |
Product Features
| Family Description | Double-ended threading insert, external 60 deg thread angle, partial profile, sharp edge. | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
