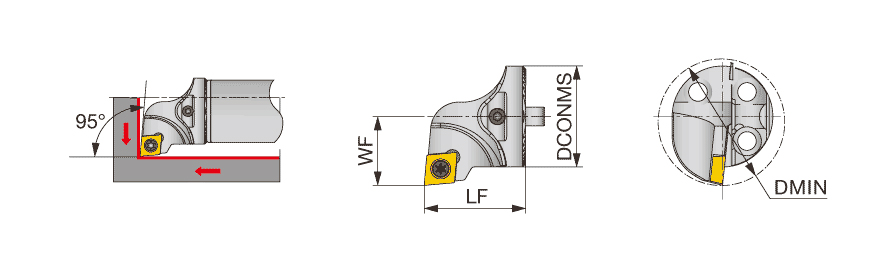

| Functional Length (LF) | 0.787″ | Master Insert Identification (MIID) | CCMT32.52 |
| Functional Width (WF) | 0.669″ | Application | | For 80deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.26″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw-on exchangeable boring head for Posi 80 deg rhombic inserts with 7 deg clearance | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SCLCL... type), and the left hand insert (L) is used for the right hand toolholders (SCLCR... type). DMIN for a 50 mm shank is equal to the requested head size plus 10 mm. For a 60 mm shank, the DMIN is the requested head size plus 20 mm. |
Shipping Info
Package Weight
3
