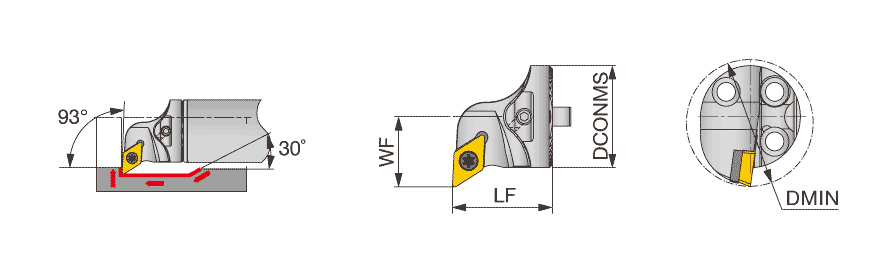

| Functional Length (LF) | 0.787″ | Master Insert Identification (MIID) | DCMT32.52 |
| Functional Width (WF) | 0.512″ | Application | | For 55deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 0.787″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.984″ | Tool Type | Internal Indexble -Turn Tool |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features

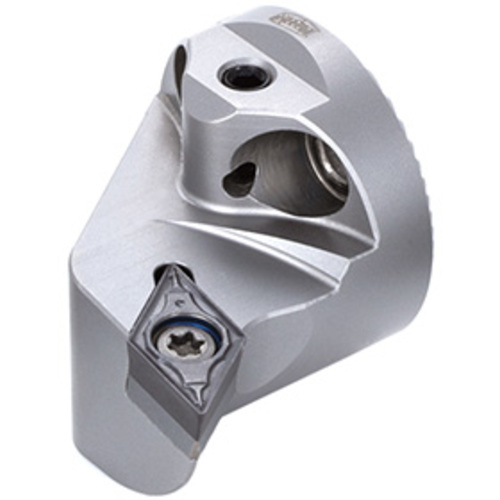

| Family Description | Screw-on exchangeable boring head for Posi 55 deg rhombic inserts with 7 deg clearance | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SDUCL... type), and the left hand insert (L) is used for the right hand toolholders (SDUCR... type). DMIN for a 50 mm shank is equal to the requested head size plus 10 mm. For a 60 mm shank, the DMIN is the requested head size plus 20 mm. |
Shipping Info
Package Weight
3
