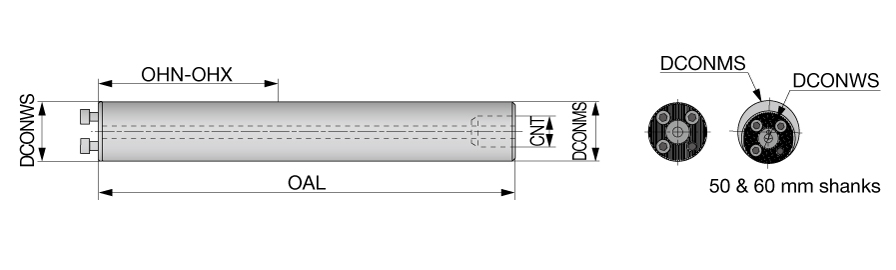

| Connection Diameter Machine Side (DCONMS) | 25 mm | Tool Type | Square Shanks |
| Functional Length (LF) | 230 mm | Body Material | Steel |
| Application | | Accessories | Straight shape | | Measurement Type | Metric |
Product Features

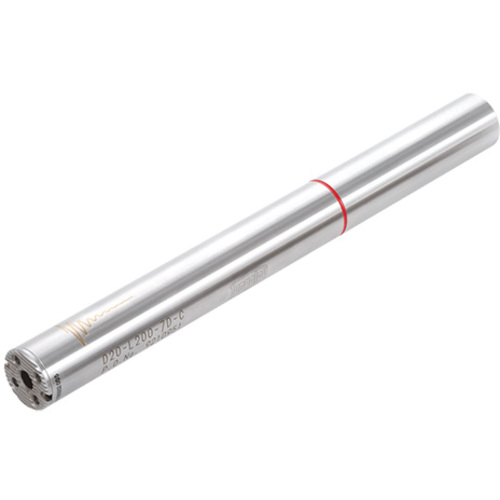

| Family Description | Anti-vibration bars with through coolant for interchangeable turning heads | Country of Origin | CHINA |
| Remarks | Note: When assembling a BoreMeister in a split sleeve, be aware that, depending on the clamp unit, the protruding bar end of the BoreMeister may interfere with the machine. |
Shipping Info
Package Weight
0.003
Related Documentation

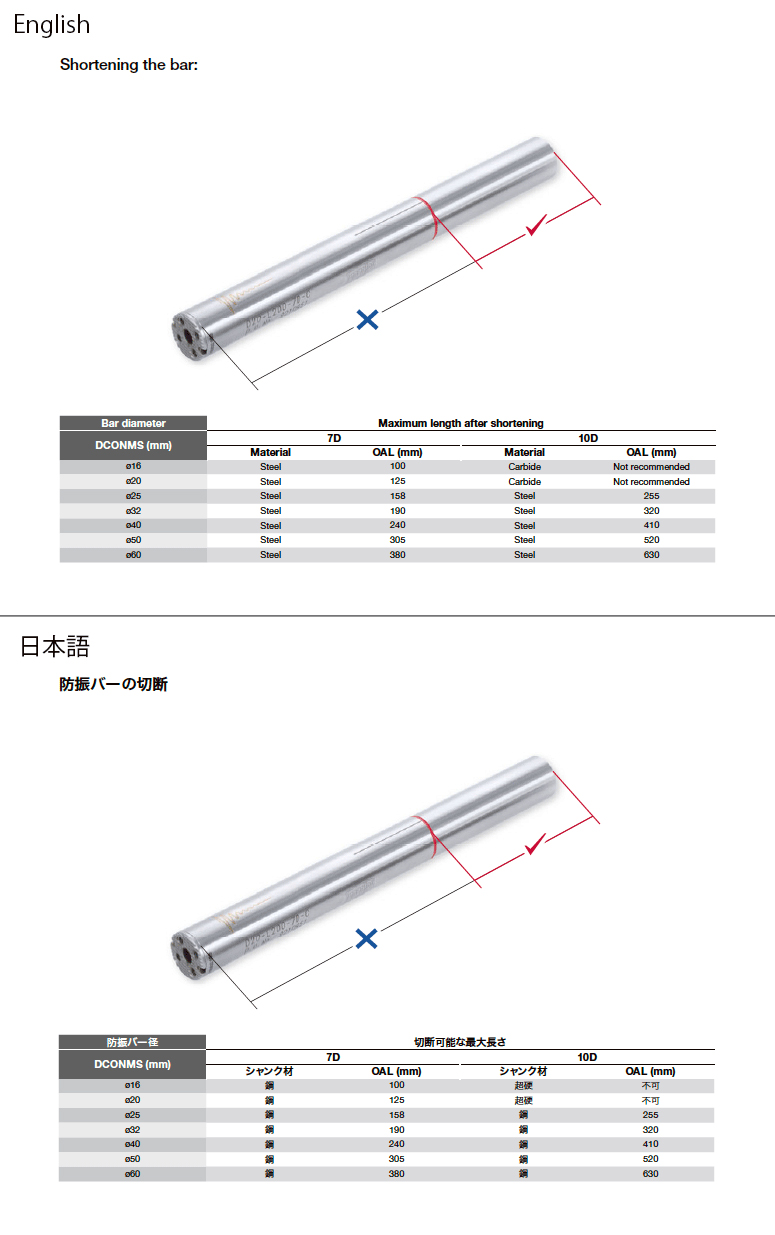

Shortening the bar: @In case the bar is too long for your machine or application, it is possible to shorten it. @Each bar has a red marking that shows the maximum length to which the bar can be shortened. @Shortening is not recommended on 12D and 14D carbide shanks.
