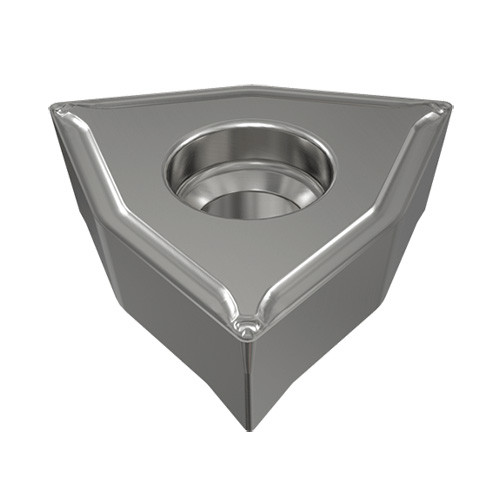

WCMT 08T508-M3P-SL IC8250
| Applicable Material | | Steel | Stainless Steel | | Grade | IC8250 |
| Application | | Y Axis Variable Approach angle | | Fixing Hole Diameter (D1) | 0.173″ |
| Insert Style | WCMT | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0315″ | Min D.O.C. | 0.032″ |
| Insert Size | 08T | Depth of Cut Maximum (APMX) | 0.157″ |
| Cutting Edge Length (L) | 0.343″ | Min. Turning Feed (ft(min)) | 0.00394 ″/rev |
| Insert Thickness (S) | 0.201″ | Max. Turning Feed (ft(max)) | 0.01575 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
Product Features
| Family Description | 80° trigon positive flank inserts for medium machining of steel. A ridge on the insert's bottom fits the groove on the tool seat for high edge location precision. | Country of Origin | Israel |
Shipping Info
Package Weight
9.4
