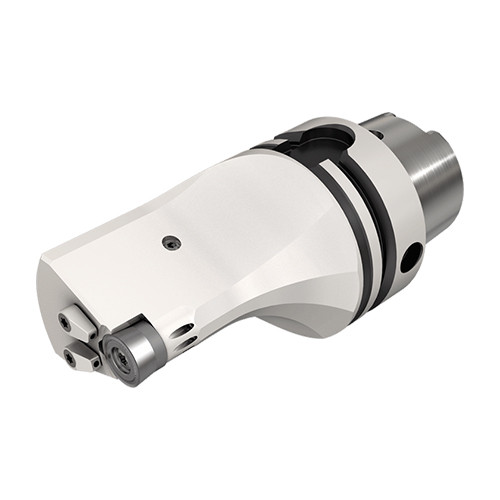

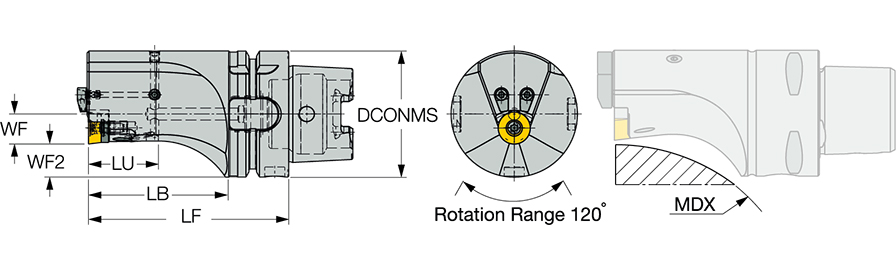

HSK A63WH-SRDCN-16-100Y
| Functional Length (LF) | 3.937″ | Application | | Y Axis Variable Approach angle | |
| Functional Width (WF) | 0.591″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Type | Tapered Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.63″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Connection Code Machine Side (CCMS) | HSK |
| Master Insert Identification (MIID) | RCMT 1606MO-14 |
Product Features
| Family Description | Y-axis turning tools carrying round inserts with 7° clearance angle | Country of Origin | Israel |
| Remarks | For Depth of cut vs. position angle examples click on More Info A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, click on More Info. |
Shipping Info
Package Weight
3.620
