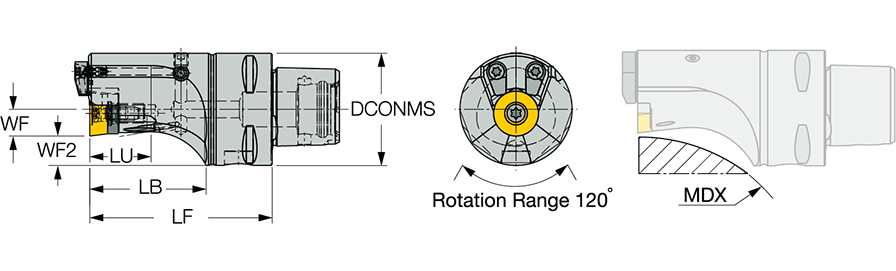

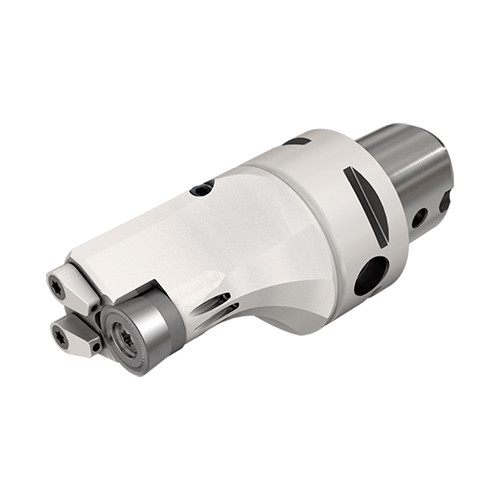

C4 SRDCN-16-H80-Y
| Functional Length (LF) | 3.15″ | Master Insert Identification (MIID) | RCMT 1606M0-14 |
| Functional Width (WF) | 0.374″ | Application | | Y Axis Variable Approach angle | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 0.63″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
Product Features
| Family Description | Y-axis turning tools carrying round inserts with 7° clearance angle | Country of Origin | Israel |
| Remarks | For Depth of cut vs. position angle examples click on More Info For user guide, see More Info |
Shipping Info
Package Weight
1.433
